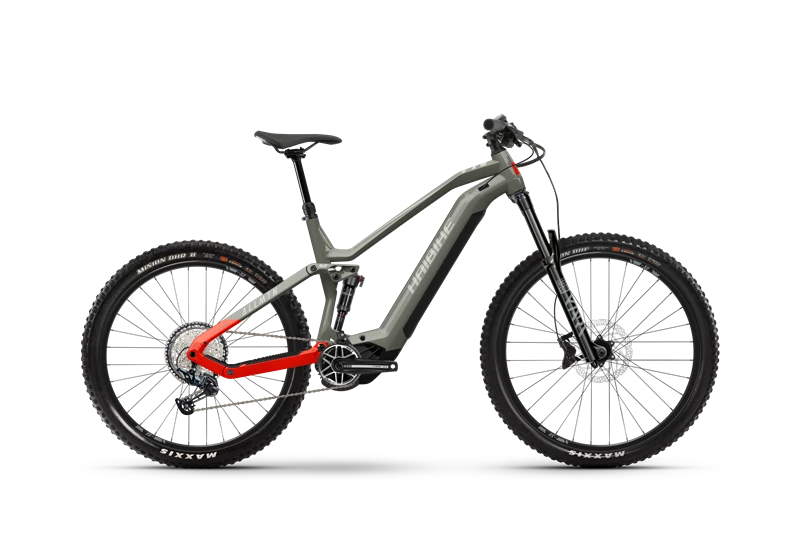

HAIBIKE ALLMTN 4 2023 – Monvelo.com

• Cadre, fourche

Cadre: Haibike, AllMtn PW-X3, Aluminium

Fourche: RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

Amortisseur: RockShox, Deluxe Select Plus, Air, Trunnion Mount

• Moteur, batterie

Moteur: Yamaha, PW-X3, 250 W, 85 Nm

Batterie: InTube, 720 Wh

Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions

• Groupe

Dérailleur arrière: Shimano, SLX M7100

Frein: Shimano, Deore M6100, Aluminium

Manette: Shimano, Deore SLX M7100

Cassette: Shimano, M6100, 10 – 51 teeth

Plateau: Haibike Components, Aluminium, 36 teeth

• Périphériques

Cintre: Haibike Components, TheBar +++, 780 mm

Potence: Haibike Components, TheStem +++, 31.8 mm

Tige de selle: Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm

Selle: Selle Royal, Vivo

• Pneus, roues

Pneus: av : Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch ar : Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch

Roues: AV WTB, ST i30 TCS, Double Wall AR WTB, ST i35 TCS, Double Wall
