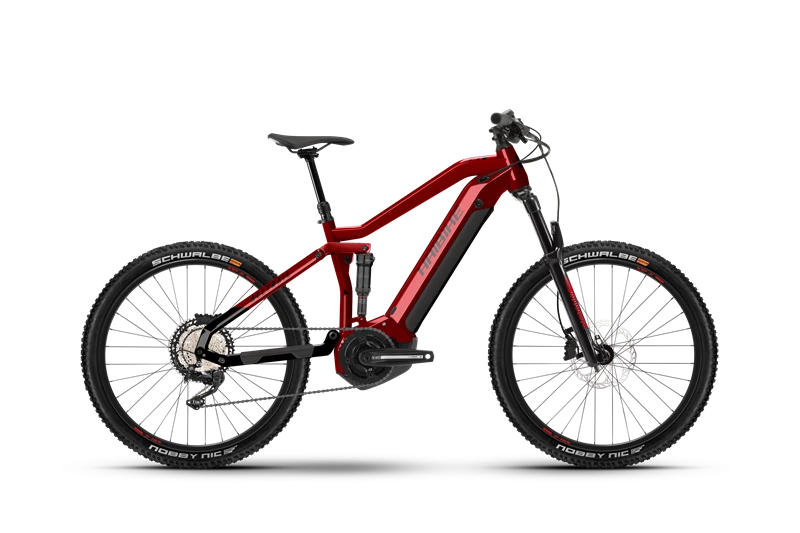

HAIBIKE ALLTRAIL 5 27.5 2022 – Monvelo.com

• Cadre, fourche

Cadre: Haibike, FullSeven Yamaha i630, Aluminium 6061

Fourche: RockShox, 35 Silver, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

Amortisseur : RockShox, Deluxe Select, Air, Trunnion Mount

---

• Moteur, batterie

Moteur: Yamaha, PW-ST System, 70 Nm, 25 km/h

Batterie: Yamaha, InTube, 630 Wh

Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions

---

• Groupe

Dérailleur arrière: Shimano, Deore M6100

Manettes : Shimano, Deore M6100, Trigger switch

Freins: Tektro, Orion M745, 4-piston disc brake

Plateau: Steel, 38 teeth

Cassette: Shimano, M6100, 10 – 51 teeth

---

• Périphériques

Cintre: Haibike Components, TheBar ++, 780 mm

Potence: Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees

Tige de selle: Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm

Selle: Selle Bassano, Reko R2 E-Sport

---

• Pneus, roues

Pneus: Schwalbe, Nobby Nic Performance, 65-584, 27.5 x 2.6 inch

Roues: Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

---

Poids: 24.2 kg

---
