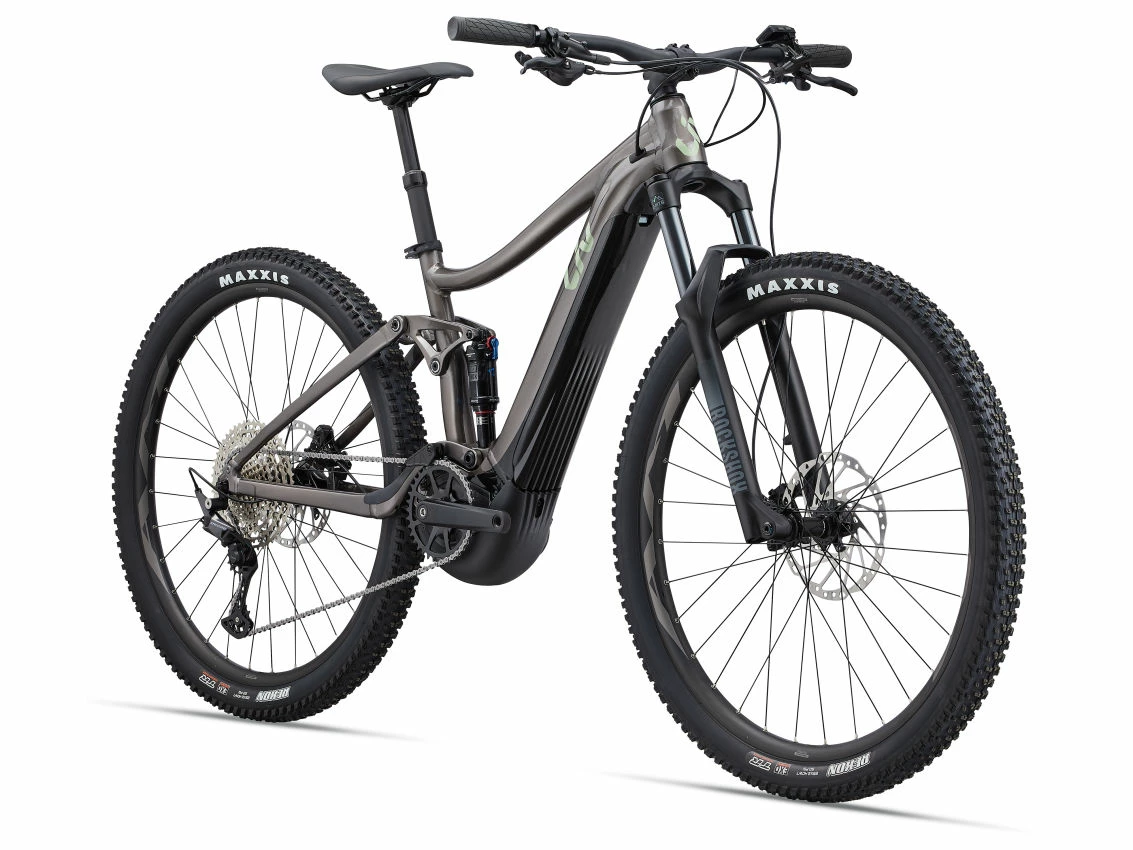

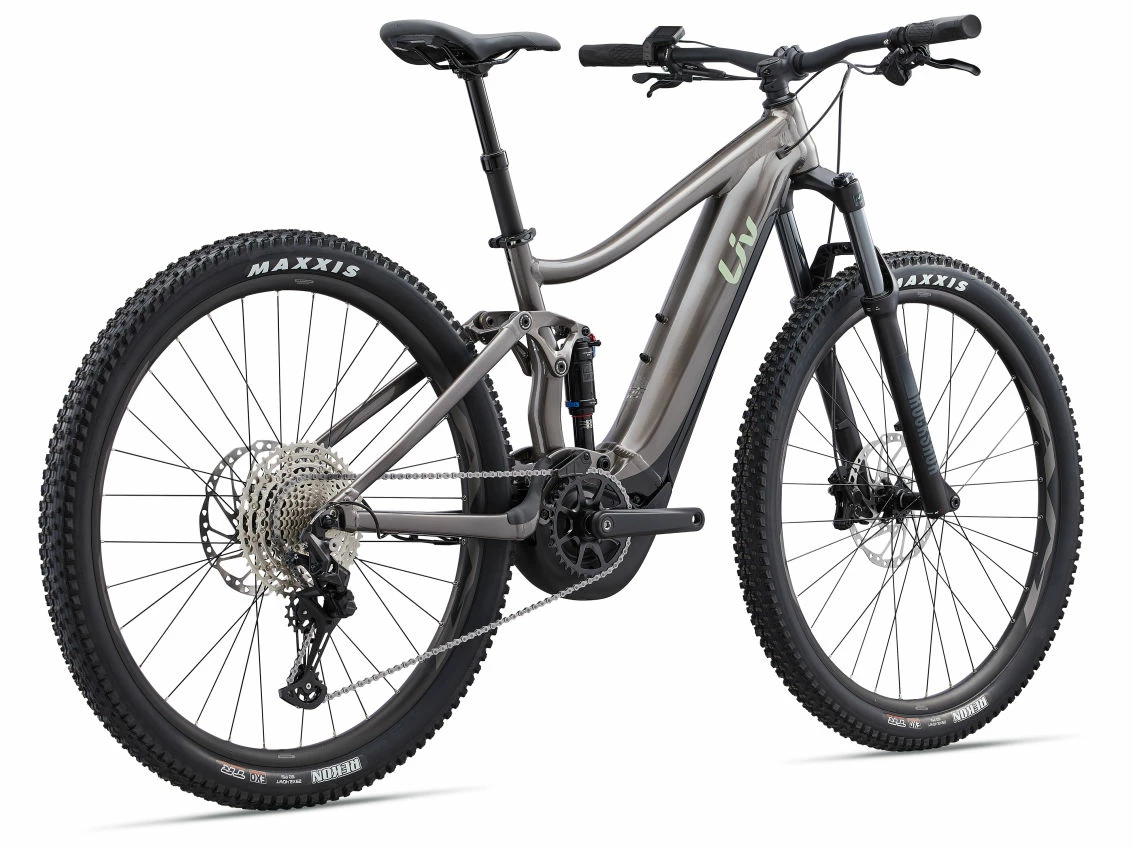

LIV EMBOLDEN E+ 1 625 Wh 2022 – Monvelo.com

• Cadre, fourche

Cadre: ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount

Fourche: RockShox Recon Silver RL, 130mm travel, Lockout, 110x15mm Boost, Maxle Stealth, e-MTB optimized

---

• Moteur, batterie

Moteur: SyncDrive Sport, 70Nm, Powered by Yamaha

Batterie: EnergyPak Smart 625Wh, 36V Integrated Lithium-Ion

Ecran: RideControl Dash, full color LCD screen

---

• Groupe

Dérailleur arrière: Shimano Deore, 12-speed

Manettes: Shimano Deore

Freins: Shimano MT420, 4-piston, hydraulic disc, 203mm

Cassette: Shimano CS-M6100-12, 10-51T, 12-speed

Pédalier: Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (XS/S:160, M/L:165)

---

• Périphériques

Cintre: Giant Connect TR Riser 31.8×750~780mm (XS-S: 750 / M-L: 780)

Potence: Giant Contact

Tige de selle: Giant Contact Switch, dropper, 30,9mm (XS: 75/ S:100/ M:125/ L:150)

Selle: Liv Sylvia E+

---

• Pneus, roues

Pneus: Maxxis REKON RACE 29″ x 2.4 TANWALL TR DUAL EXO 60TPI FOLD TUBELESS BLACK W/ BLACK MAXXIS LOGO 630

Roues: Giant AM 27.5″ / 29″, Tubeless ready, 30mm inner width (XS: 27.5+ / S-L: 29)
